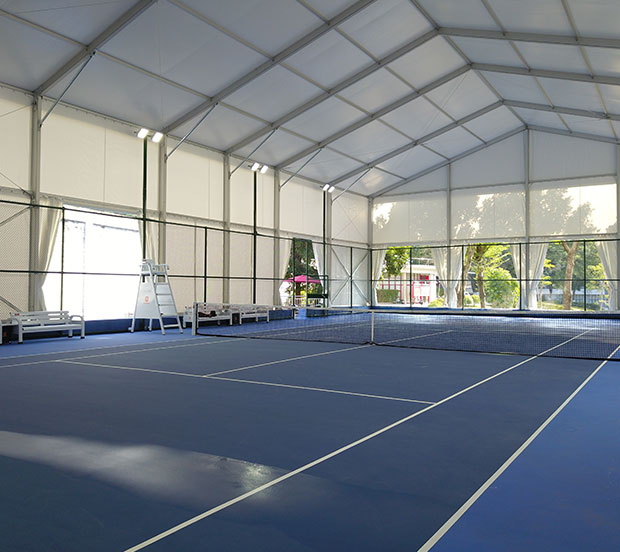

Tennis Tent

Our tennis tent adopts a clear span structure design. The interior space is completely unobstructed, ensuring that players can move freely on the court and have unobstructed views. Whether training or competing, players can perform at their best in a safe and spacious environment. The tent is made of high-performance PVC material and features water resistance, UV resistance and flame retardancy, ensuring stable use in sunlight, wind, rain and even snow. Our tennis tent is perfect for clubs, schools, colleges, and various tournament venues, and its modular design can be flexibly expanded according to specific needs.

INQUIRY ONLINE

Features of Type Tennis Tent

Full-Court Coverage

Designed to accommodate one or multiple regulation-size tennis courts, the tent structure offers complete coverage.

Clear Span Interior

The tennis tent features a wide clear span design with no internal support columns, providing a completely unobstructed playing surface.

Ample Clearance

With a peak height of up to 10 meters for optimal ball trajectory.

All-Weather Use

Constructed from waterproof, UV-resistant, and flame-retardant PVC fabric, the tennis tent delivers reliable performance in rain, sun, wind, or snow.

Thermal Insulation Options

The clear span tent can be equipped with natural ventilation vents, fans, or HVAC systems.

Lighting-Ready

Support professional-grade LED lighting systems.

Expandable Design

The modular design allows easy expansion to include additional functional areas such as spectator seating, locker rooms, or rest areas.

Specifications

Span Width	Eave Height	Bay Spacing
20.00 m	4 m/6 m	5.00 m
25.00 m
30.00 m
40.00 m
50.00 m

Frame	4 Channels, Hard Pressed Extruded Aluminium Alloy 6061/T6.
Cover Material	White/ Transparent/ Customized Color, PVC-coated polyester textile, flame retardant to DIN 4102 B1, M2, CFM.750 g-900 g/m²
Optional Walls	1) 750 g/m² PVC Cover 2) Glass Wall 3) ABS Wall 4) Sandwich Wall 5) Hard Wall / Solid Wall 6) Rock Wool Wall
Wind Resistance	80~140km/h
Fixing Solution	Ground anchor, expandable bolt, weight plate, etc.
Service Life	More than 15 years
Applicable Temperature Range	-30 degree Celsius ~ +70 degree Celsius
Ground Situation	Grassland, earthland, asphalt, cement ground, marble, etc
Connectors	Expansion bolts to fix tent
Additional Services	1) Provide video guidance for installation. 2) Provide engineering calculations for tent structure’s wind, snow, and seismic resistance. 3) Technical professionals provide on-site installation guidance services.
