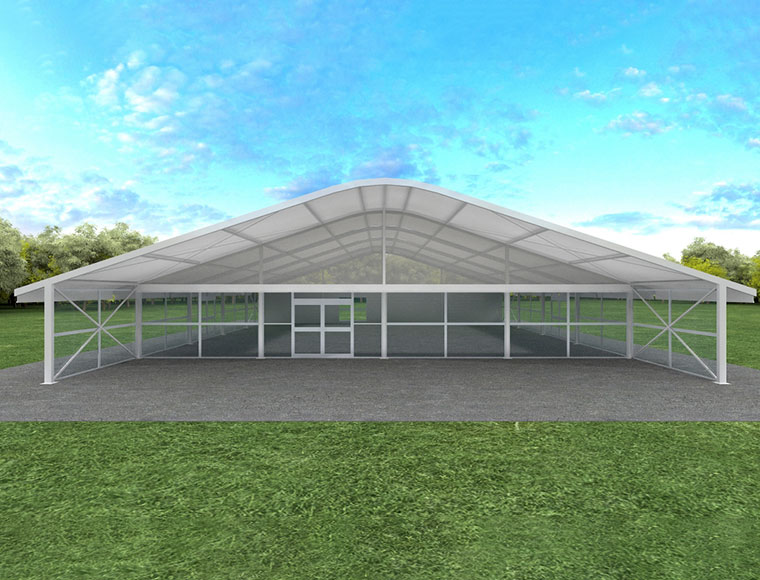

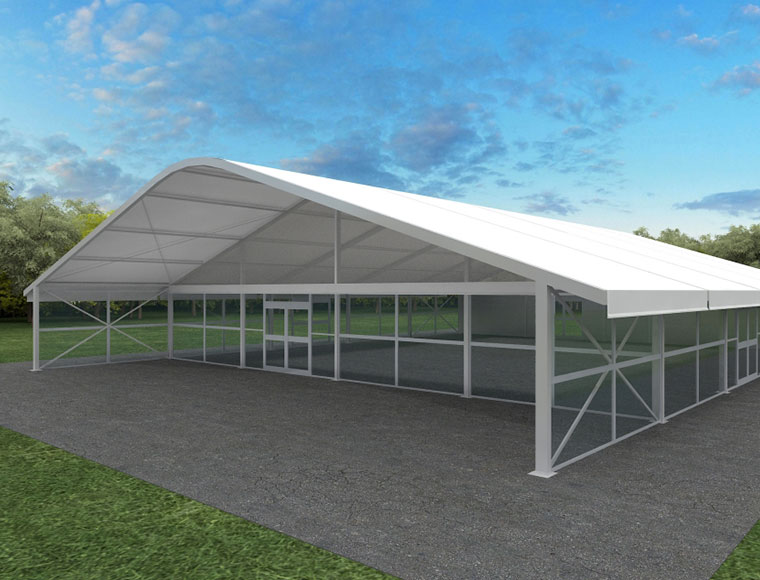

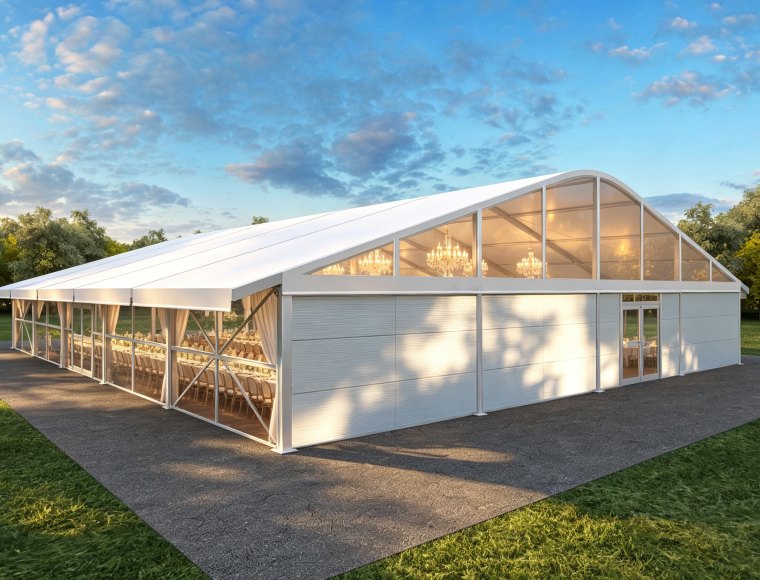

The curved tent adopts a streamlined arc-shaped roof design and has a fashionable and grand appearance. Its main frame is made of high-strength aluminum alloy, featuring a stable structure, corrosion resistance, and excellent wind and pressure resistance. The interior of the clear span structure adopts a design without a central column, providing a complete and open 100% usable space, making the layout more free and efficient. Meanwhile, its modular structure can be extended in length as needed to meet the spatial configuration requirements of activities of different scales. Whether used for large-scale exhibitions, sports events, wedding banquets, corporate celebrations, or temporary storage, our curved tent can provide high-quality temporary building solutions for various event scenarios.

INQUIRY ONLINE
  • Features
  • Specifications
  • Why Choose Us
  • Applications
  • Cases
  • FAQ

Features

01

Expansive Clear Span Space

With widths of up to 60 meters and no interior columns, the curved tent offers a spacious, barrier-free interior that supports endless layout possibilities—from elaborate event decor to efficient warehouse storage.

02

High-Strength Construction

Built from 6061/T6 hard-pressed extruded aluminum alloy, the tent frame delivers superior strength, rigidity, and corrosion resistance—ensuring it remains stable and dependable for years of use.

03

All-Weather Protection

The clear span tent adopts high-quality PVC-coated polyester fabric (850 g/m²), which is waterproof, UV-resistant, and flame-retardant (DIN 4102 B1).

04

Fully Customized

Sizes, colors, and accessories can be customized to match your event theme. Wall materials can be selected from PVC, glass, ABS, sandwich panels, solid panels or rock wool, and flooring, glass doors and integrated lighting or temperature control systems are also optional.

05

Modular & Portable

Modular components allow for fast installation and dismantling, and the compact and easy-to-transport design reduces logistics costs. If more space is needed in the future, expansion is also very convenient.

06

Long-Term Value

With a lifespan exceeding 15 years and lower construction costs than permanent buildings, the curved tent is a smart and cost-effective solution for venues requiring large-area coverage.

Specifications

  • Size
  • Key Attributes
Span Width Eave Height Ridge Height Bay Spacing longest Component
3.00 m 2.70 m 3.10 m 3.00 m 3.20 m
10.00 m 4.00 m 5.40 m 5.00 m 5.30 m
15.00 m 4.00 m 6.20 m 5.00 m 5.80 m
20.00 m 4.00 m 7.00 m 5.00 m 8.00 m
25.00 m 4.00 m 7.90 m 5.00 m 10.40 m
30.00 m 4.00 m 8.70 m 5.00 m 10.50 m
40.00 m 4.00 m 10.30 m 5.00 m 10.50 m
50.00 m 4.00 m 12.00 m 5.00 m 11.30 m
60.00 m 4.00 m 13.60 m 5.00 m 11.30 m
Notes: Standard eave height 4.00 m, and 2.50 m – 6.00 m eave height is available upon request.



Frame 4 Channels, Hard Pressed Extruded Aluminium Alloy 6061/T6.
Cover Material White/ Transparent/ Customized Color, PVC-coated Polyester Textile, Flame Retardant to DIN 4102 B1,M2,CFM.750 g-900 g/m²
Optional Walls 1) 750 g/m² PVC Cover

2) Glass Wall
3) ABS Wall

4) Sandwich Wall

5) Hard Wall / Solid Wall

6) Rock Wool Wall

Wind Resistance 80~140 km/h
Fixing Solution Ground Anchor, Expandable Bolt, Weight Plate, etc.
Service Life More than 15 years
Applicable Temperature Range -30 degree Celsius ~ +70 degree Celsius
Ground Situation Grassland, Earth Land, Asphalt, Cement Ground, Marble, etc
Connectors Expansion Bolts to Fix Tent
Additional Services 1) Provide video guidance for installation.

2) Provide engineering calculations for tent structure’s wind, snow, and seismic resistance.

3) Technical professionals provide on-site installation guidance services.

For More Information, Please Contact Sales Manager.

KENTEN Curved Tent VS Regular Curved Tent

KENTEN Structures Others
Aluminum 6061 T6 / 6082 T6 6063 T5 / 6005 T5
PVC Fire Retardant B1,M2 B2
Wind Resistance Up to 120 km/h Up to 80 km/h

Why Choose KENTEN Curved Tents?

01

Proven Durability

Stronger frame, higher wind resistance, and better weatherproofing than standard curved tents.

02

Design Expertise

Our clear span tents not only enhance the visual appeal of your events but also meet stringent safety standards.

03

Customization Without Limits

From luxury decor to industrial use, we can customize every tent to your specific needs.

04

Global Experience

Serving clients in over 100 countries with professional engineering, installation guidance, and after-sales support.

Curved Tent

Applications

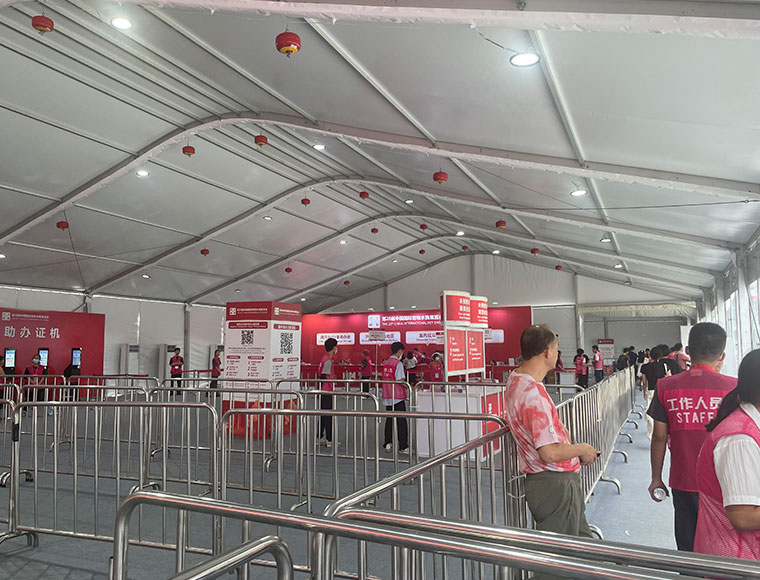

Trade Shows & Exhibitions

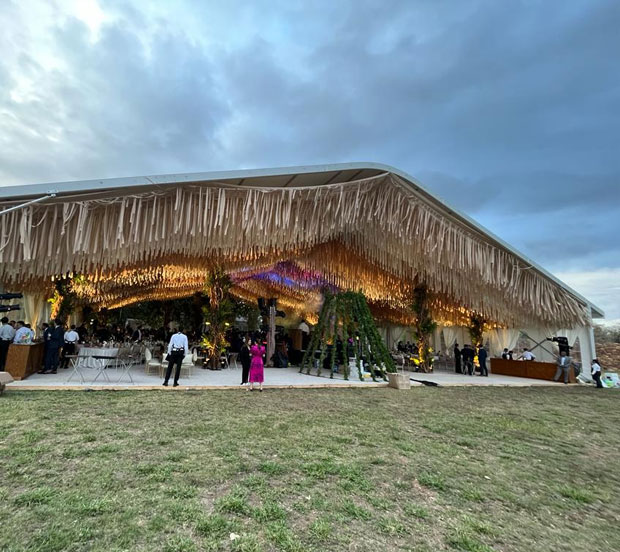

Weddings & Private Celebrations

Sporting & Entertainment Events

Commercial Activities

Video

FAQs About Our Clear Span Building Structure

Frequently Asked Questions About Curved Tent

Q1: Is the installation process of the curved tent complicated?

A: The curved tent adopts a modular design and is relatively simple to install.

Q2: What events or uses are arc tents suitable for?

A: The curved tent has a spacious and barrier-free interior and a sturdy structure, which is suitable for a variety of events and uses.

Q3: Can the tent be customized to fit a specific event theme?

A: Yes! You can personalize the size and color of the tent. We also provide additional accessory options to create the perfect atmosphere for your party, such as floor systems and side walls.

Q4: Which size arc tent is suitable for my event?

A: Choosing the right size tent depends on the number of guests, the type of event, and the space required for the equipment or event. Our team of experts can help you determine the best size for your specific needs, ensuring that you have enough comfortable space and functions.
